Vlier Toggle Pads

MECHANICAL COMPONENTS - Toggle Pads

NEW Vlier Serrated Toggle Pad
Experience new gripping power from Vlier with our new Serrated Toggle pads.

Vlier Steel/Stainless or Steel/Stainless with Delrin^® Toggle Pads
Vlier Steel/Stainless or Steel Stainless with Delrin Pad Toggle Pads solidly clamp parts with uneven or off-angle surfaces. Self-aligning and self leveling with a 15° angle of movement from center for pad seating against work piece surface with applied force. Eliminates clamp slippage. Delrin pads avoid damage to soft metals, polished surfaces or other finishes. Stainless steel models offer extra protection against rust and corrosion.

Steel/Stainless or Steel/Stainless with Delrin^® Toggle Pad
Toggle Pad Diagram

Dimensions - Toggle Pads (Steel or Steel with Delrin Pads)
Part No.		A	B	C	D	E
Delrin Pads	Steel Pads	A	B	C	D	E
NP300	P300	1/4-20	1/2 Hex	5/8	5/8	5/16
NP302	P302	5/16-18	5/16 Hex	3/4	11/16	3/8
NP304	P304	3/8-16	5/8 Hex	3/16	3/4	3/8
NP306	P306	1/2-13	3/4 Hex	15/16	7/8	7/16
NP308	P308	5/8-11	7/8 Hex	1	1	7/16
NP310	P310	3/4-10	1-1/16 Hex	1-11/32	1-1/4	5/8
NP312	P312	1-8	1-3/8 Hex	1-53/64	1-5/8	13/16

Load Data - Toggle Pads (Steel or Steel with Delrin Pads)
Part No.		Max. Recommended Load (Lbs.)
Delrin Pads	Steel Pads	Delrin Pads	Steel Pads
NP300	P300	360	3900
NP302	P302	360	5900
NP304	P304	570	6400
NP306	P306	570	7000
NP308	P308	1000	10000
NP310	P310	1300	13500
NP312	P312	1570	18750

Dimensions - Toggle Pads (Stainless Steel or Stainless Steel with Delrin Pads)
Part No.		A	B	C	D	E
Delrin Pads	Steel Pads	A	B	C	D	E
NSSP300	SSP300	1/4-20	1/2 Hex	5/8	5/8	5/16
NSSP302	SSP302	5/16-18	9/16 Hex	3/4	11/16	3/8
NSSP304	SSP304	3/8-16	5/8 Hex	3/16	3/4	3/8
NSSP306	SSP306	1/2-13	3/4 Hex	15/16	7/8	7/16
NSSP308	SSP308	5/8-11	7/8 Hex	1	1	7/16
NSSP310	SSP310	3/4-10	1-1/16 Hex	1-11/32	1-1/4	5/8
NSSP312	SSP312	1-8	1-3/8 Hex	1-53/64	1-5/8	13/16

Load Data - Toggle Pads (Stainless Steel or Stainless Steel with Delrin Pads)
Part No.		Max. Recommended Load (Lbs.)
Delrin Pads	Steel Pads	Delrin Pads	Steel Pads
NSSP300	SSP300	360	5000
NSSP302	SSP302	360	7600
NSSP304	SSP304	570	8250
NSSP306	SSP306	570	9000
NSSP308	SSP308	1000	12900
NSSP310	SSP310	1300	17400
NSSP312	SSP312	1570	24200

Delrin is a registered trademark of DuPont Corp.

Serrated Toggle Pads

Experience new gripping power from Vlier with our new Serrated Toggle pads. These new toggle pads solidly clamp parts with uneven and off-angle surfaces,with the new strength of a serrated gripping pad. This design feature works even harder for you to eliminate clamp slippage. all are self-aligning and self-leveling, with the 10 degree angle of movement from the center. We offer a wide selection in steel or stainless steel materials, to fit whatever job you may be working on.
Serrated Spring Locating Pins

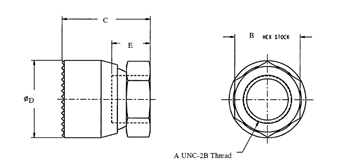

Dimensions - Serrated Toggle Pads (Steel or Stainless Steel)
Part No.		A	B	C	D	E
Steel Pads	Stainless Steel Pads	A	B	C	D	E
PS300	SSPS300	1/4-20	1/2	0.625	0.625	5/16
PS302	SSPS302	5/16-18	9/16	0.750	0.688	3/8
PS304	SSPS304	3/8-16	5/8	0.813	0.750	3/8
PS306	SSPS306	1/2-13	3/4	0.938	0.875	7/16
PS308	SSPS308	5/8-11	7/8	1.000	1.000	7/16
PS310	SSPS310	3/4-10	1-1/16	1.344	1.250	5/8
PS312		1-8	1-3/8	1.828	1.625	13/16

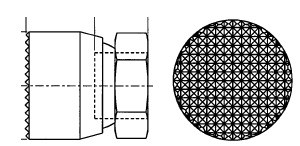

serrated footprint for serated toggle pad

Each pad features our Serrated footprint to increase clamping power without increasing pressure.

Serrated Bottom
Self Leveling
Off-Center Adjustment

Load Data - Toggle Pads (Steel or Stainless Steel - Serrated)
Part No.		Max. Recommended Load (Lbs.)
Steel Pads	Stainless Steel Pads	Steel Pads	Stainless Pads
PS300	SSPS300	3900	5000
PS302	SSPS302	5900	7600
PS304	SSPS304	6400	8250
PS306	SSPS306	7000	9000
PS308	SSPS308	10000	12900
PS310	SSPS310	13500	17400
PS312		18750
