COMPONENTI MECCANICI - Arresti a molla

Arresti a molla
Gli arresti a molla forniscono forze finali controllate e precise in assenza di pareti per attrezzature. Le serie di arresti a molla hanno un design con corpo in alluminio.



SPRING STOP NOSE OPTIONS

Nose Option "A"    Nose Option "B"    Nose Option "C"

Arresti a molla

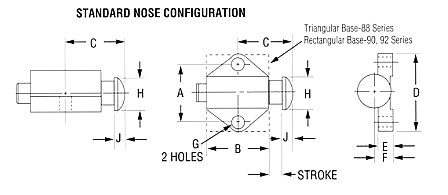

Numero parte		Forza finale			Dimensioni
In acciaio Nose	Delrin Nose	Initial	Mid	Final	Corsa	A	B	C	D	E	F	G	H	K	J	M	N	P	Q
SS88	NSS-88	5.13	10.0	14.58	1/8	.656	.688	.593	.875	.187	.218	.136	.375	-	.125	-	-	-	-
SS88A		5.13	10.0	14.58	1/8	.656	.688	.656	.875	.187	.218	.136	-	.562	.187	.625	.200	.625	.250
SS88B		5.13	10.0	14.58	1/8	.656	.688	.656	.875	.187	.218	.136	-	.562	.187	.625	.200	.625	-
SS88C		5.13	10.0	14.58	1/8	.656	.688	.656	.875	.187	.218	.136	-	.562	.187	.625	.200	.625	-
SS90	NSS-90	2.25	14.0	25.75	3/16	1.125	1.00	.875	1.50	.250	.312	.203	.562	-	.187	-	-	-	-
SS90A		2.25	14.0	25.75	3/16	1.125	1.00	.938	1.50	.250	.312	.203	-	1.000	.250	.875	.297	.875	.375
SS90B		2.25	14.0	25.75	3/16	1.125	1.00	.938	1.50	.250	.312	.203	-	1.000	.250	.875	.297	.875	-
SS90C		2.25	14.0	25.75	3/16	1.125	1.00	.938	1.50	.250	.312	.203	-	1.000	.250	.875	.297	.875	-
SS92	NSS-92	16.5	32.0	47.50	1/4	1.50	1.375	1.218	2.00	.250	.437	.266	.812	-	.281	-	-	-	-
SS92A		16.5	32.0	47.50	1/4	1.50	1.375	1.312	2.00	.250	.437	.266	-	1.250	.375	1.250	.422	1.250	.500
SS92B		16.5	32.0	47.50	1/4	1.50	1.375	1.312	2.00	.250	.437	.266	-	1.250	.375	1.250	.422	1.250	-
SS92C		16.5	32.0	47.50	1/4	1.50	1.375	1.312	2.00	.250	.437	.266	-	1.250	.375	1.250	.422	1.250	-
