Spring Stops

Vlier’s spring stops provide accurate, controlled end forces in a range of applications where fixture walls are not available. The spring-loaded stops have an aluminum body design, and feature the option of a steel or Delrin^® Nose, which has electrical insulating properties and prevents marring of soft metals such as brass and aluminum.

Typical Uses

Workholding and fixtures applications.

Download the PDF

ANSI (Inch/American) Tables

Metric Tables

CAD Library

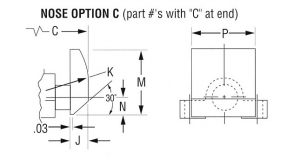

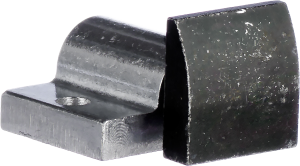

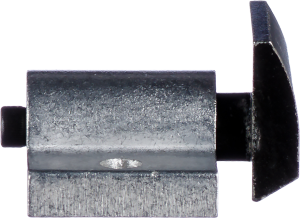

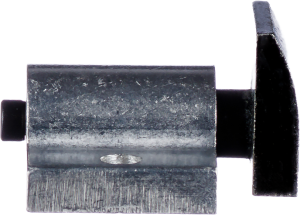

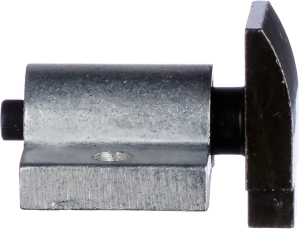

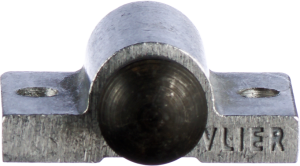

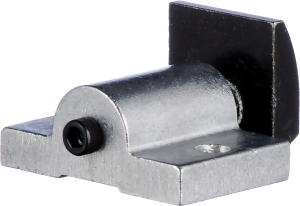

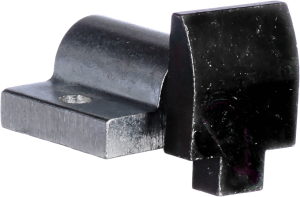

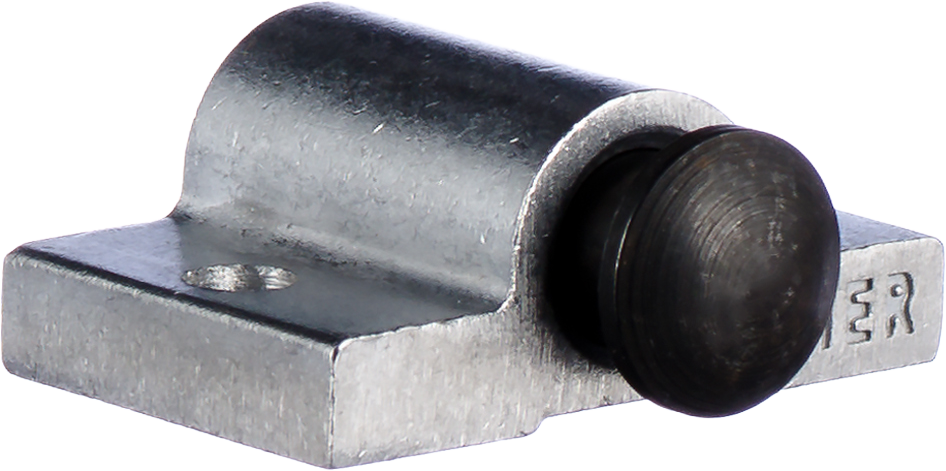

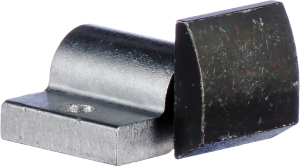

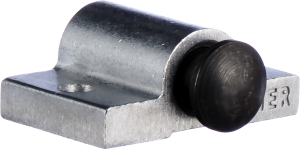

Spring Stops w/Steel Nose

Part No.	End Force			Stroke	A	B	C	D	E	F	G	H	K	J	M	N	P	Q	ROHS	CAD
Part No.	Initial	Mid	Final	Stroke	A	B	C	D	E	F	G	H	K	J	M	N	P	Q	ROHS	CAD
SS88	5.13	10	14.58	1/8	0.656	0.688	0.593	0.875	0.187	0.218	0.136	0.375	-	0.125	-	-	-	-		SS88
SS88A	5.13	10	14.58	1/8	0.656	0.688	0.656	0.875	0.187	0.218	0.136	-	0.562	0.187	0.625	0.20	0.625	0.250		SS88A
SS88B	5.13	10	14.58	1/8	0.656	0.688	0.656	0.875	0.187	0.218	0.136	-	0.562	0.187	0.625	0.20	0.625	-		SS88B
SS88C	5.13	10	14.58	1/8	0.656	0.688	0.656	0.875	0.187	0.218	0.136	-	0.562	0.187	0.625	0.20	0.625	-		SS88C
SS90	2.25	14	25.75	3/16	1.125	1.000	0.875	1.500	0.250	0.312	0.203	0.562	-	0.187	-	-	-	-		SS90
SS90A	2.25	14	25.75	3/16	1.125	1.000	0.938	1.500	0.250	0.312	0.203	-	1.00	0.250	0.875	0.297	0.875	0.375		SS90A
SS90B	2.25	14	25.75	3/16	1.125	1.000	0.938	1.500	0.250	0.312	0.203	-	1.00	0.250	0.875	0.297	0.875	-		SS90B
SS90C	2.25	14	25.75	3/16	1.125	1.000	0.938	1.500	0.250	0.312	0.203	-	1.00	0.250	0.875	0.297	0.875	-		SS90C
SS92	16.50	32	47.50	1/4	1.500	1.375	1.312	2.000	0.250	0.437	0.266	0.812	-	0.281	-	-	-	-		SS92
SS92A	16.50	32	47.50	1/4	1.500	1.375	1.312	2.000	0.250	0.437	0.266	-	1.25	0.375	1.25	0.422	1.25	0.500		SS92A
SS92B	16.50	32	47.50	1/4	1.500	1.375	1.312	2.000	0.250	0.437	0.266	-	1.25	0.375	1.25	0.422	1.25	-		SS92B
SS92C	16.50	32	47.50	1/4	1.500	1.375	1.312	2.000	0.250	0.437	0.266	-	1.25	0.375	1.25	0.422	1.25	-		SS92C

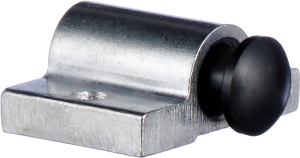

Spring Stops w/ Delrin® Nose

Part No.	End Force			Stroke	A	B	C	D	E	F	G	H	K	J	M	N	P	Q	ROHS	CAD
Part No.	Initial	Mid	Final	Stroke	A	B	C	D	E	F	G	H	K	J	M	N	P	Q	ROHS	CAD
NSS88	5.13	10	14.58	1/8	0.656	0.688	0.593	0.875	0.187	0.218	0.136	0.375	-	0.125	-	-	-	-		NSS88
NSS90	2.25	14	25.75	3/16	1.125	1.000	0.875	1.500	0.250	0.312	0.203	0.562	-	0.187	-	-	-	-		NSS90
NSS92	16.50	32	47.50	1/4	1.500	1.375	1.218	2.000	0.250	0.437	0.266	0.812	-	0.281	-	-	-	-		NSS92

Product not available in metric.
