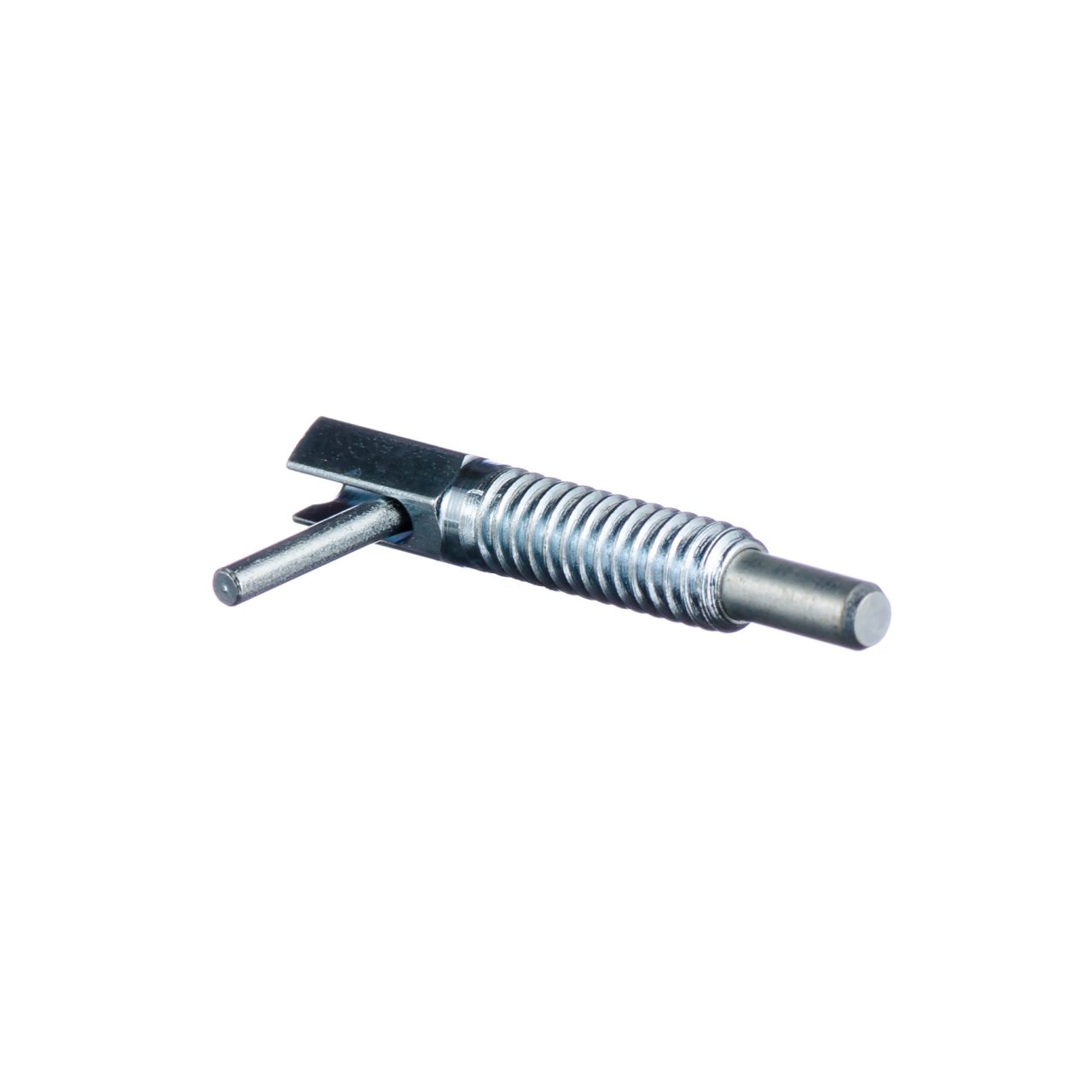

Lever Style Plungers

With Thread Lock &

Steel

Lever style plungers feature a tapered end, making for easy alignment. The locking variety permits the plunger tip to be fully withdrawn into the body, and then locked into position.

Typical Uses

  • Positioning
  • Fastening
  • Securing
  • With Thread Lock
  • Latching
  • Quick disconnect

Special Features

  • Lever handle design
  • Hand-retractable locking plunger
  • Tapered end for easy alignment
  • Steel construction
Download the PDF
lever style plungers locking non-locking steel
lever style plungers locking non-locking steel
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Lever Style Plungers - Locking Plunger Nose - Steel

Part No.End Force, (Lbs.)ABCDE
Hex		FGHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
FR250FR250P0.502.501/4-201.250.380.160.250.500.090.80*FR250FR250P
FR375FR375P0.753.753/8-162.000.560.250.380.750.141.310.13FR375FR375P
FR500FR500P1.005.001/2-132.110.750.310.501.000.191.250.15FR500FR500P
FR625FR625P1.005.005/8-113.051.000.380.621.000.192.000.18FR625FR625P

No thread relief in 1/4-20 thread size and M6 thread for metric.

Lever Style Plungers - Locking Plunger Nose - Steel

Part No.End Force, NABCDEFGHIROHSCAD
CAD
With Thread Lock
With Thread LockInitialFinal
FRM6FRM6P2.211.1M6 x 1.0032.010.04.06.012.72.320.0*FRM6FRM6P
FRM10FRM10P3.316.7M10 x 1.5051.014.06.010.019.03.533.03.3FRM10FRM10P
FRM12FRM12P4.522.3M12 x 1.7554.019.08.012.025.44.832.03.8FRM12FRM12P
FRM16FRM16P4.522.0M16 x 2.0077.025.09.516.025.05.051.05.0FRM16FRM16P

No thread relief in 1/4-20 thread size and M6 thread for metric.
