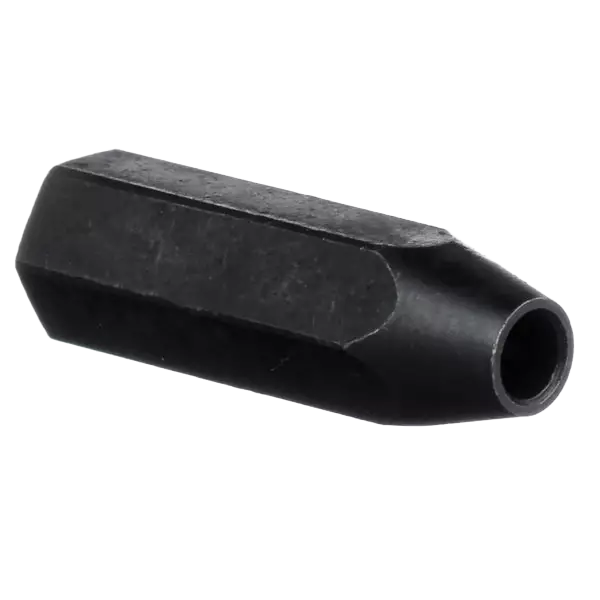

Knurled Press Fit Tool

The knurled press-fit tool is designed for quick installation of the knurled press-fit plunger to prevent spring and body damage.

Special Features

  • Fast & easy installation
  • Prevents spring damage



Download the PDF
Knurled-Press-Fit-Tool
Knurled-Press-Fit-Tool
ANSI (Inch/American) Tables
Metric Tables
CAD Library

Knurled Press Fit Tool

Part No.Installation ToolROHSCAD
(D)(S)PFBK47KT47PFBK47
(D)(S)PFBK48KT47 PFBK48
(D)(S)PFBK51KT51PFBK51
(D)(S)PFBK52KT51 PFBK52
(D)(S)PFBK53KT53PFBK53
(D)(S)PFBK54KT53PFBK54
(D)(S)PFBK55KT55PFBK55
(D)(S)PFBK56KT55PFBK56
(D)(S)PFBK57KT57PFBK57
(D)(S)PFBK58KT57PFBK58
(D)(S)PFBK59KT59PFBK59
(D)(S)PFBK60KT59PFBK60
(D)(S)PFPK51KT51PFPK51
(D)(S)PFPK52KT51PFPK52
(D)(S)PFPK53KT53PFPK53
(D)(S)PFPK54KT53PFPK54
(D)(S)PFPK57KT55PFPK57
(D)(S)PFPK58KT55PFPK58
(D)(S)PFPK59KT60PFPK59
(D)(S)PFPK60KT60PFPK60

Product not available in metric.
