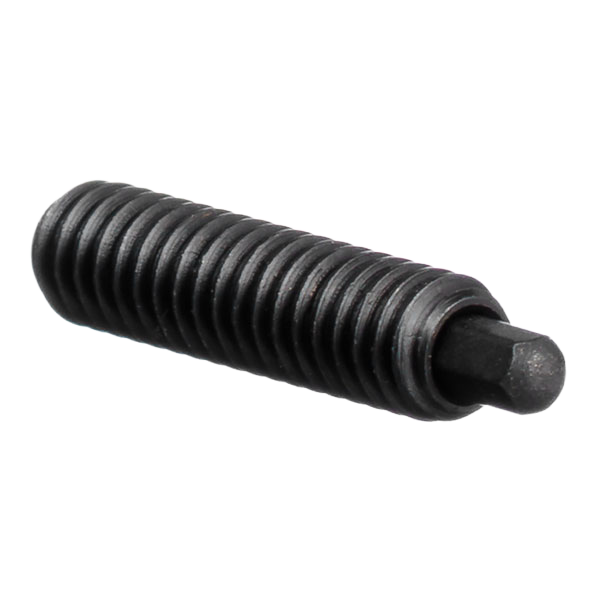

Hex Nose Standard Spring Plungers

Hex nose standard spring plungers have a hexagonal plunger nose for easy adjustment with a standard end or socket wrench plunger end to speed installation or removal. They are hardened for long life.

Typical Uses

Positioning
Indexing
Ejecting
With Thread Lock
Latching
Detents
Contacts
Lifters
Insulators

Special Features

Easy installation
Hexagonal nose design
Case hardened plunger
Steel, black oxide finish

Download the PDF

Hex Nose Standard Spring Plungers

Part No.

End Force, (Lbs.)

ROHS

CAD

CAD
With Thread Lock

With Thread Lock

Initial

Mid.

Final

H54

H54N

3.0

13.0

1/4-20

1.00

0.188

0.125

0.071

H54

H54N

H56

H56N

3.0

15.0

5/16-18

1.00

0.188

0.125

0.071

H56

H56N

H58

H58N

5.5

14.5

3/8-16

1.13

0.188

0.108

H58

H58N

H60

H60N

6.6

17.4

1/2-13

1.25

0.250

0.144

H60

H60N

H62

H62N

10.5

25.5

5/8-11

1.50

0.313

0.179

H62

H62N

H64

H64N

6.7

37.3

3/4-10

1.75

0.313

0.375

0.215

H64

H64N

H66

H66N

16.0

68.0

1-8

2.41

0.500

0.290

H66

H66N

Light End Force Hex Nose Standard Spring Plungers

Part No.

End Force, (Lbs.)

ROHS

CAD

CAD
With Thread Lock

With Thread Lock

Initial

Mid.

Final

H55

H55N

1.0

2.5

4.0

1/4-20

1.00

0.188

0.125

0.071

H55

H55N

H57

H57N

1.5

3.0

4.5

5/16-18

1.00

0.188

0.125

0.071

H57

H57N

H59

H59N

2.8

5.0

7.2

3/8-16

1.13

0.188

0.108

H59

H59N

H61

H61N

2.7

6.0

9.3

1/2-13

1.25

0.250

0.144

H61

H61N

H63

H63N

3.5

7.0

10.5

5/8-11

1.50

0.313

0.179

H63

H63N

H67

H66N

4.0

17.5

31.0

1-8

2.41

0.500

0.290

H67

H66N

Hex Nose Standard Spring Plungers

Part No.

End Force, N

ROHS

CAD

CAD
With Thread Lock

With Thread Lock

Initial

Final

HM10

HM10P

24.5

64.5

M10 x 1.5

28.6

4.8

2.8

HM10

HM10P

HM12

HM12P

24.5

64.5

M12 x 1.75

28.6

4.8

2.8

HM12

HM12P

HM16

HM16P

46.5

113.0

M16 x 2.0

38.1

8.0

4.6

HM16

HM16P

HM20

HM20P

30.0

166.0

M20 x 2.5

44.5

8.0

9.5

5.6

HM20

HM20P
