Expanded Metric Series Plungers

Expanded metric series plungers are designed for easy installation. They are ideal where a threaded plunger is impractical or when threaded adjustments are not required.

Double Ended

Typical Uses

Indexing
Electrical contacts
Locating
Torque limiting
Positioning
Detents

Special Features

Easy installation
No thread adjustments
Brass, stainless steel, Delrin^® material choices
Minimize design time

Download the PDF

ANSI (Inch/American) Tables

Metric Tables

CAD Library

Product not available in inch

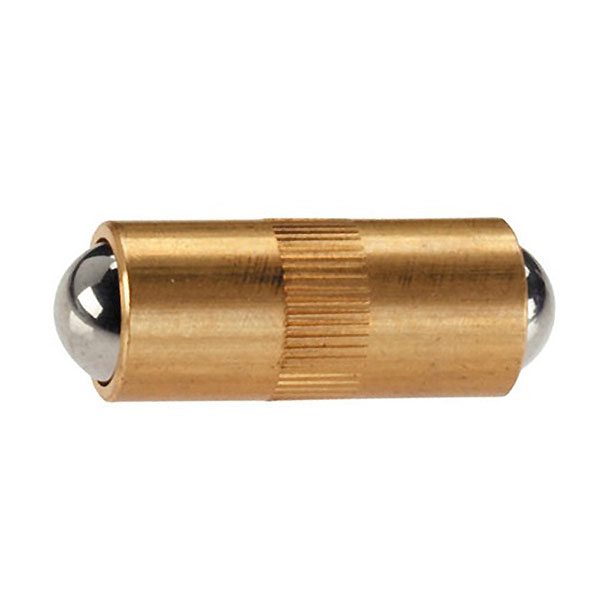

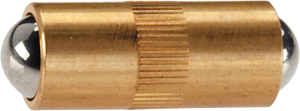

Expanded Metric Series Plungers – Double Ended

Part No.	End Force, N		ØA	B	C	ØD	ØE	ROHS	CAD
Part No.	Initial	Final	ØA	B	C	ØD	ØE	ROHS	CAD
HBPFD25	1.3	2.5	2.5	5.3	0.65	2.0	2.52		HBPFD25
HBPFD30	2.0	4.5	3.0	7.3	0.80	2.5	3.02		HBPFD30
HBPFD40	2.5	7.5	4.0	9.0	0.90	3.0	4.03		HBPFD40
HBPFD50	3.5	8.0	5.0	10.8	1.20	4.0	5.03		HBPFD50
HBPFD70	4.0	12.0	7.0	14.0	2.00	6.0	7.03		HBPFD70
HBPFD80	6.0	15.0	8.0	18.0	2.10	6.5	8.03		HBPFD80

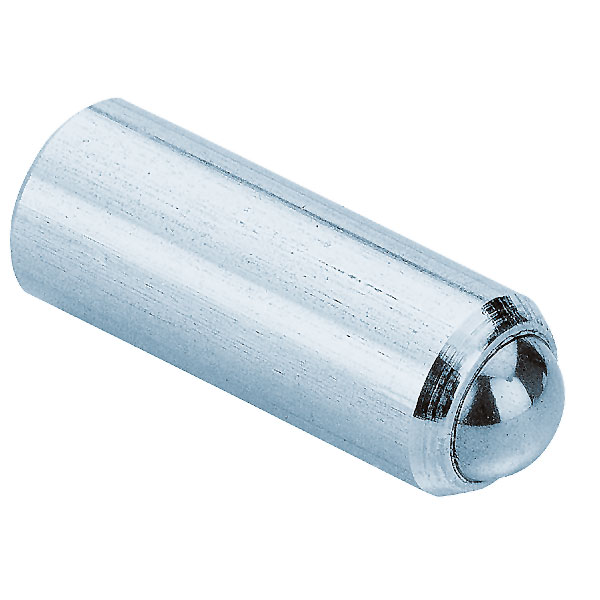

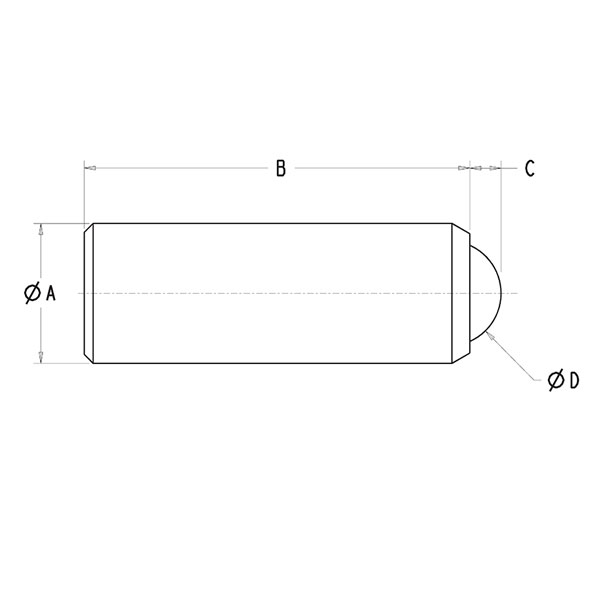

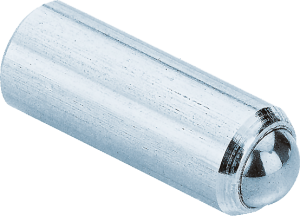

Expanded Metric Series Plungers – Single Ended

Part No.	End Force, N		ØA	B	C	ØD	ROHS	CAD
Part No.	Initial	Final	ØA	B	C	ØD	ROHS	CAD
HSPFS30	4.5	7.5	3.0	7.0	0.65	2.0		HSPFS30
HSPFS35	8.5	14.0	3.5	9.0	0.8	2.5		HSPFS35
HSPFS40	8.0	14.0	4.0	11.0	0.9	3.0		HSPFS40
HSPFS45	9.5	16.5	4.5	12.0	0.95	3.2		HSPFS45
HSPFS50	11.0	18.0	5.0	13.0	1.0	3.5		HSPFS50
HSPFS55	15.5	25.0	5.5	14.0	1.2	4.0		HSPFS55
HSPFS60	18.0	31.0	6.0	15.0	1.5	4.5		HSPFS60

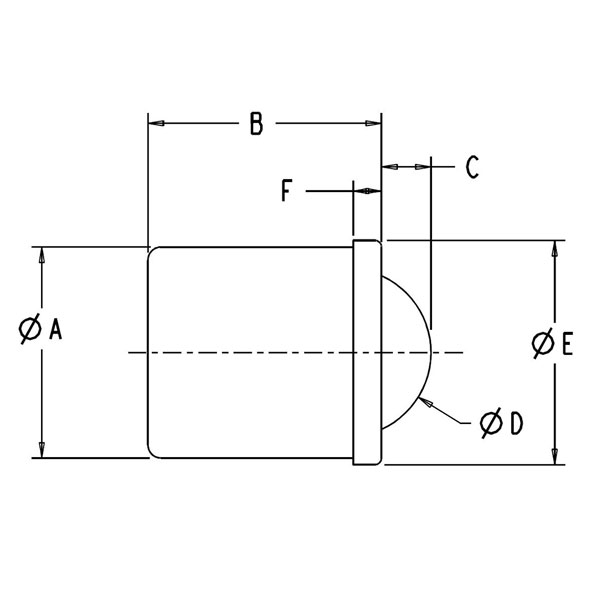

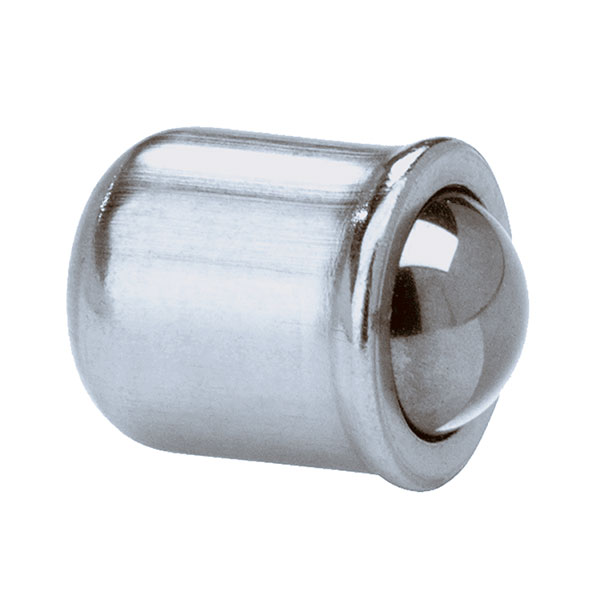

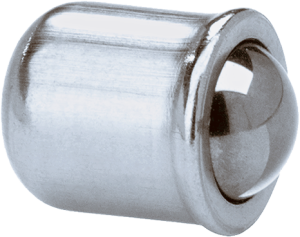

Expanded Metric Series Plungers – Stainless Steel Body

Part No.	End Force, N		ØA +0.1	B	C	ØD	ØE	F REF	ROHS	CAD
Part No.	Initial	Final	ØA +0.1	B	C	ØD	ØE	F REF	ROHS	CAD
HSPFB4	2.5	6.0	4.0	5.0	1.0	3.0	4.6	0.9		HSPFB4
HSPFB5	3.0	6.5	5.0	6.0	1.4	4.0	5.6	0.9		HSPFB5
HSPFB6	5.5	11.5	6.0	7.0	1.8	5.0	6.5	1.0		HSPFB6
HSPFB8	7.0	12.5	8.0	9.0	2.4	6.5	8.5	1.1		HSPFB8
HSPFB10	8.5	18.5	10.0	13.0	3.3	8.5	11.0	1.5		HSPFB10
HSPFB12	12.0	26.5	12.0	16.0	4.0	10.0	13.0	2.3		HSPFB12

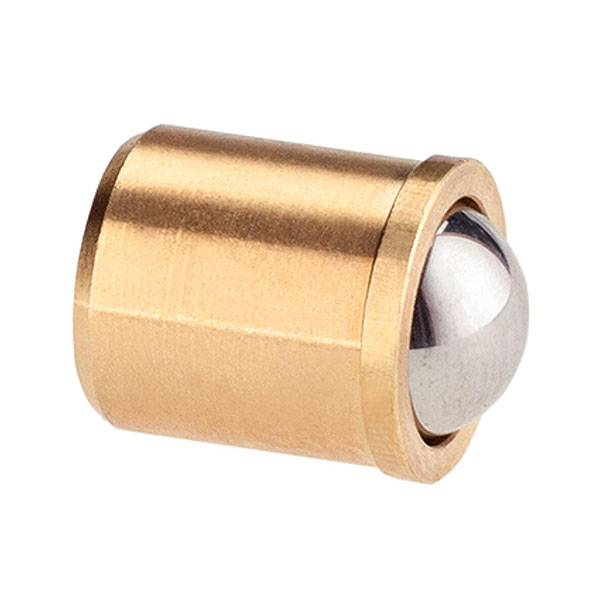

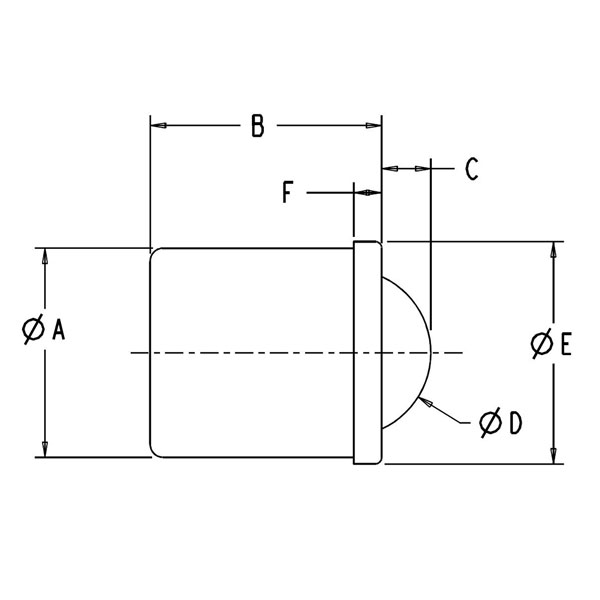

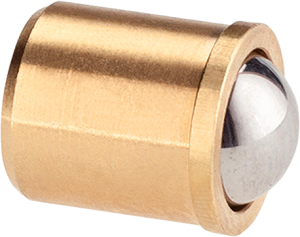

Expanded Metric Series Plungers – Brass Body

Part No.	End Force, N		ØA +0.1	B	C	ØD	ØE	F REF	ROHS	CAD
Part No.	Initial	Final	ØA +0.1	B	C	ØD	ØE	F REF	ROHS	CAD
HBPFB4	3.0	6.0	4.0	5.0	0.8	3.0	4.5	1.0		HBPFB4
HBPFB5	4.0	6.5	5.0	6.0	1.0	4.0	5.5	1.0		HBPFB5
HBPFB6	6.0	11.5	6.0	7.0	1.6	5.0	6.5	1.0		HBPFB6
HBPFB8	8.0	12.5	8.0	9.0	1.9	6.5	8.5	1.0		HBPFB8

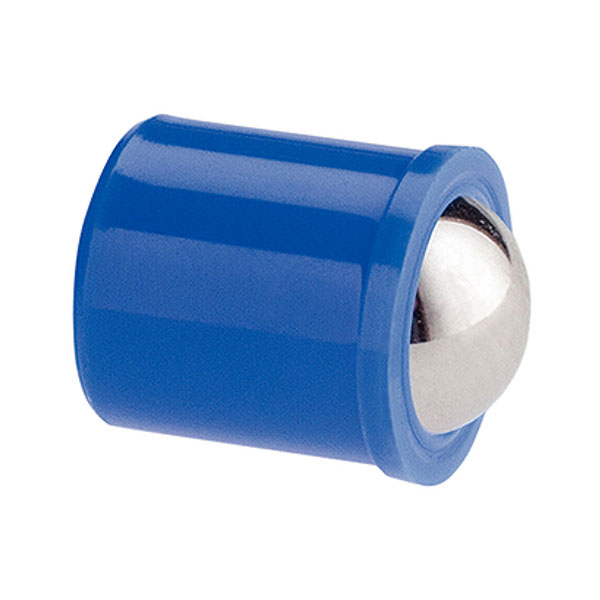

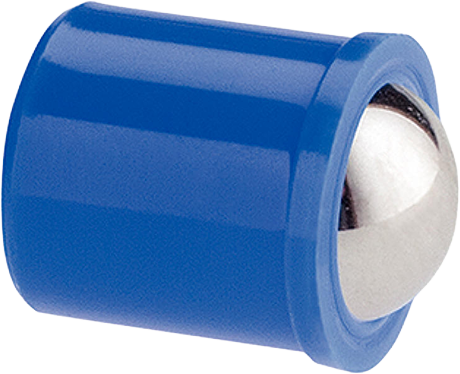

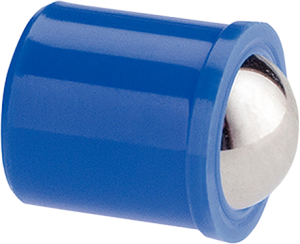

Expanded Metric Series Plungers – Delrin® Body w/Stainless Steel Ball

Part No.	End Force, N		ØA +0.1	B	C	ØD	ØE	F REF	ROHS	CAD
Part No.	Initial	Final	ØA +0.1	B	C	ØD	ØE	F REF	ROHS	CAD
HDPFB4	3.0	6.5	4.0	5.0	0.8	3.0	4.6	1.0		HDPFB4
HDPFB5	6.0	9.4	5.0	6.0	1.0	4.0	5.6	1.0		HDPFB5
HDPFB6	6.2	12.6	6.0	7.0	1.6	5.0	6.5	1.0		HDPFB6
HDPFB8	10.0	20.4	8.0	9.0	1.9	6.5	8.5	1.0		HDPFB8
HDPFB10	11.9	22.3	10.0	13.5	2.4	8.0	11.0	1.5		HDPFB10
HDPFB12	14.0	25.0	12.0	16.0	3.3	10.0	13.0	1.5		HDPFB12

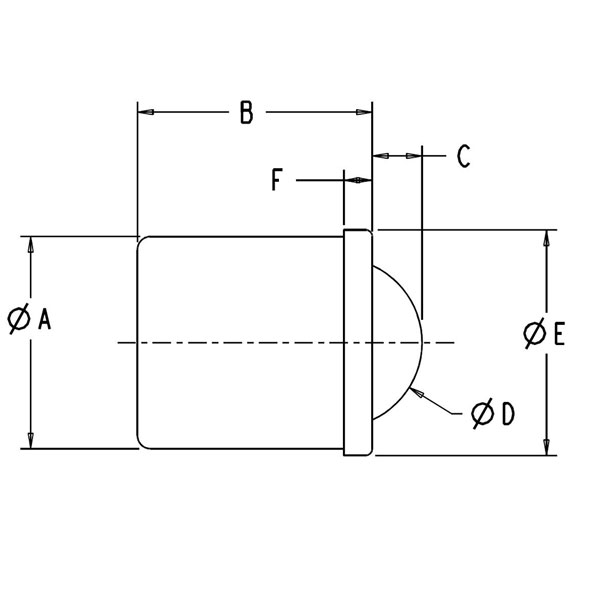

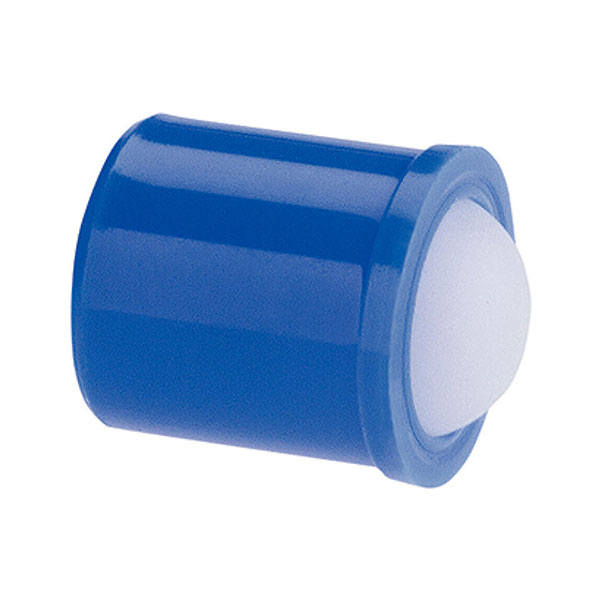

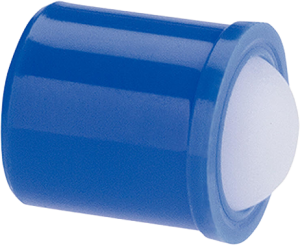

Expanded Metric Series Plungers – Delrin® Body w/Delrin® Ball

Part No.	End Force, N		ØA +0.1	B	C	ØD	ØE	F REF	ROHS	CAD
Part No.	Initial	Final	ØA +0.1	B	C	ØD	ØE	F REF	ROHS	CAD
HDDPFB4	3.0	6.5	4.0	5.0	0.8	3.0	4.6	1.0		HDDPFB4
HDDPFB5	6.0	9.4	5.0	6.0	1.0	4.0	5.6	1.0		HDDPFB5
HDDPFB6	6.2	12.6	6.0	7.0	1.6	5.0	6.5	1.0		HDDPFB6
HDDPFB8	10.0	20.4	8.0	9.0	1.9	6.5	8.5	1.0		HDDPFB8
HDDPFB10	11.9	22.3	10.0	13.5	2.4	8.0	11.0	1.5		HDDPFB10
HDDPFB12	14.0	25.0	12.0	16.0	3.3	10.0	13.0	1.5		HDDPFB12
