Ball Lock Lanyards

Galvanized or Stainless steel wire (not for lifting) with clear nylon coating and stainless tab and sleeve. Six lengths and four styles to choose from.





Download the PDF
VLA080_1
VLA080_1



ANSI (Inch/American) Tables
Metric Tables
CAD Library

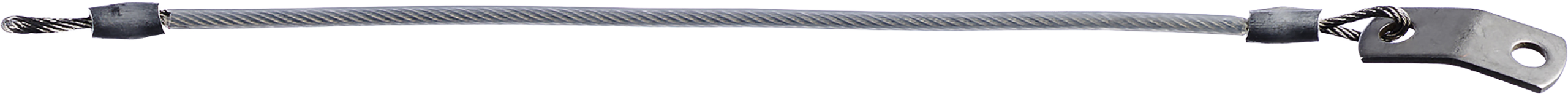

Lanyard Style A:

Ball Lock Lanyards - Style A

Part No. Length (in.)ROHSCAD
VLA060 6.0
VLA080 8.0
VLA100 10.0
VLA120 12.0
VLA180 18.0
VLA240 24.0
  • Wire: 7/7 Stainless wire, 1/16″ diameter
  • Wire Coating: Clear nylon, to 1/8″ diameter
  • Tab & Sleeve: Stainless

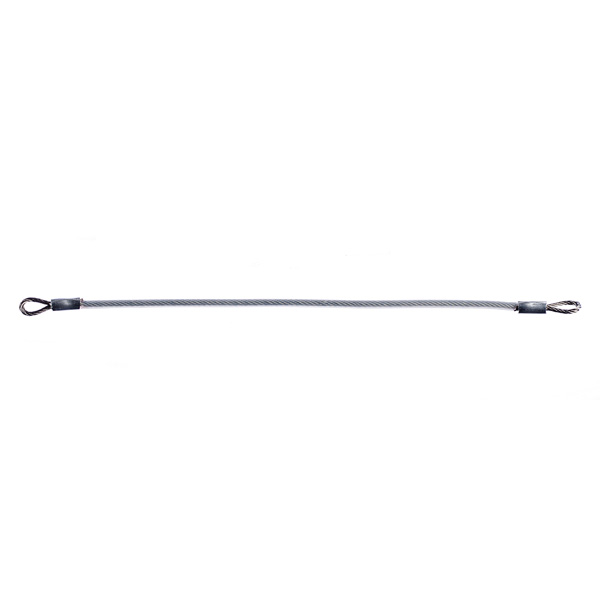

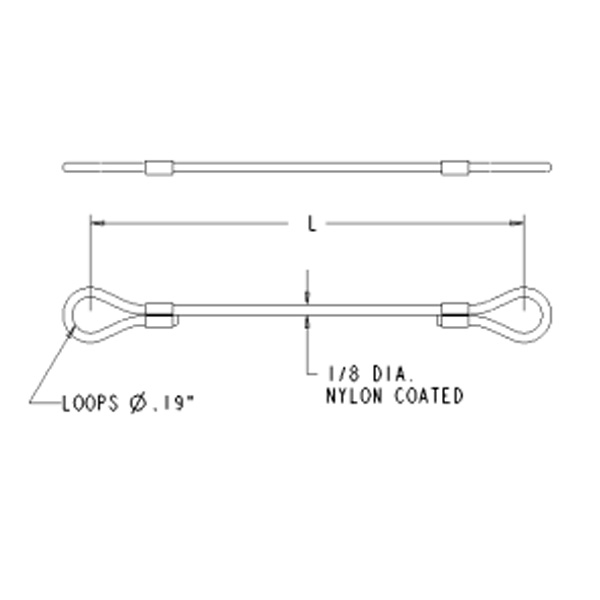

Lanyard Style B:

Ball Lock Lanyards - Style B

Part No. Length (in.)ROHSCAD
VLB060 6.0
VLB080 8.0
VLB100 10.0
VLB120 12.0
VLB180 18.0
VLB240 24.0
  • Wire: 7/7 Stainless wire, 1/16″ diameter
  • Wire Coating: Clear nylon, to 1/8″ diameter
  • Tab & Sleeve: Stainless

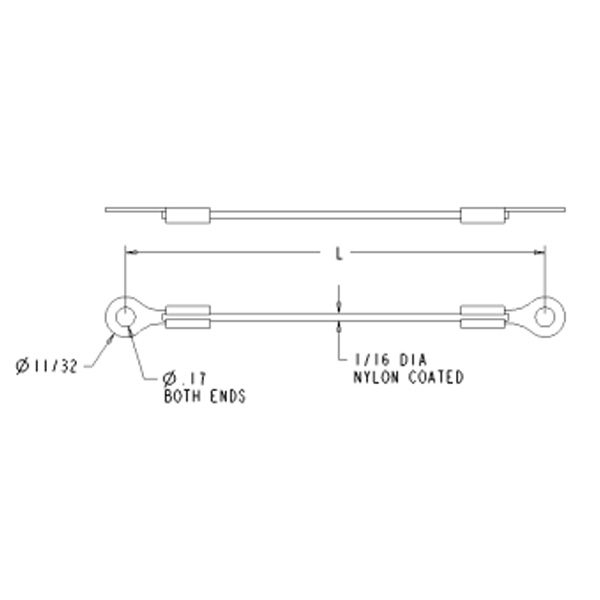

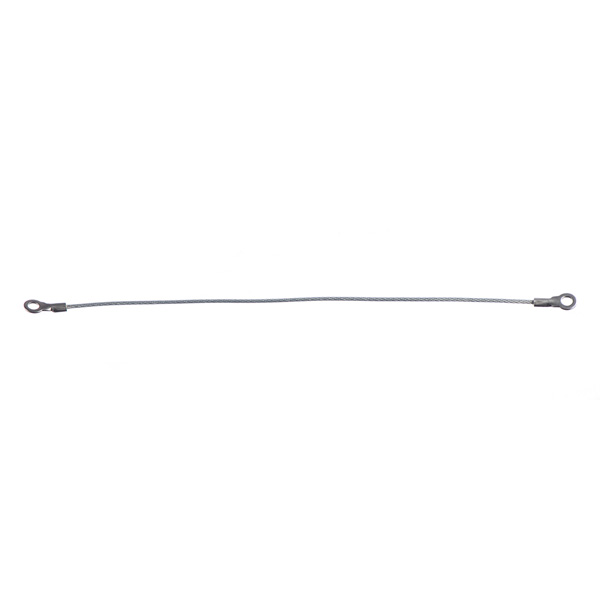

Lanyard Style C:

Ball Lock Lanyards - Style C

Part No. Length (in.)ROHSCAD
VLC060 6.0
VLC080 8.0
VLC100 10.0
VLC120 12.0
VLC180 18.0
VLC240 24.0
  • Wire: Galvanized steel wire, 3/64″ diameter
  • Wire Coating: Clear nylon, to 1/16″ diameter
  • Tab & Sleeve: Stainless

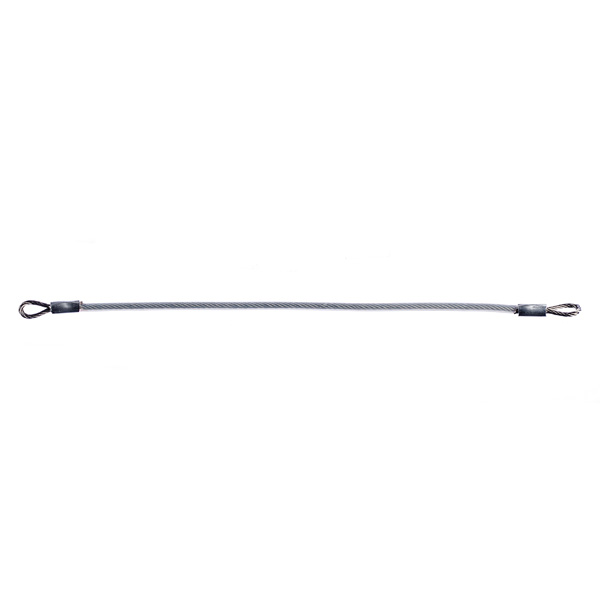

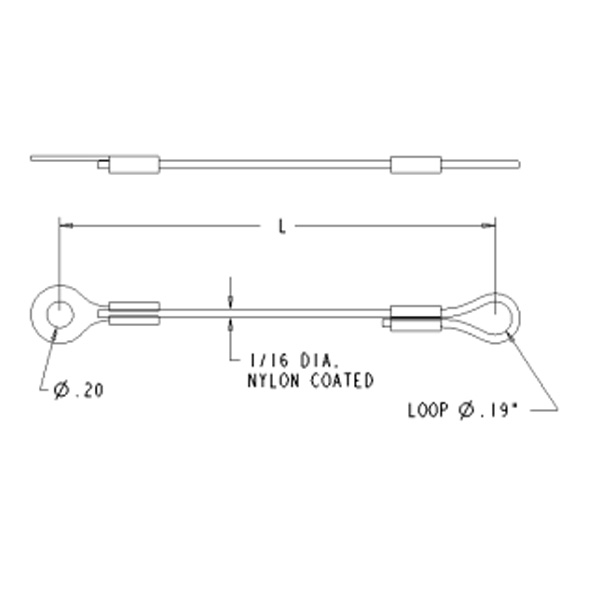

Lanyard Style D:

Ball Lock Lanyards - Style D

Part No. Length (in.)ROHSCAD
VLD060 6.0
VLD080 8.0
VLD100 10.0
VLD120 12.0
VLD180 18.0
VLD240 24.0
  • Wire: Galvanized steel wire, 3/64″ diameter
  • Wire Coating: Clear nylon, to 1/16″ diameter
  • Tab & Sleeve: Stainless

Product not available in metric.

Download the PDF
